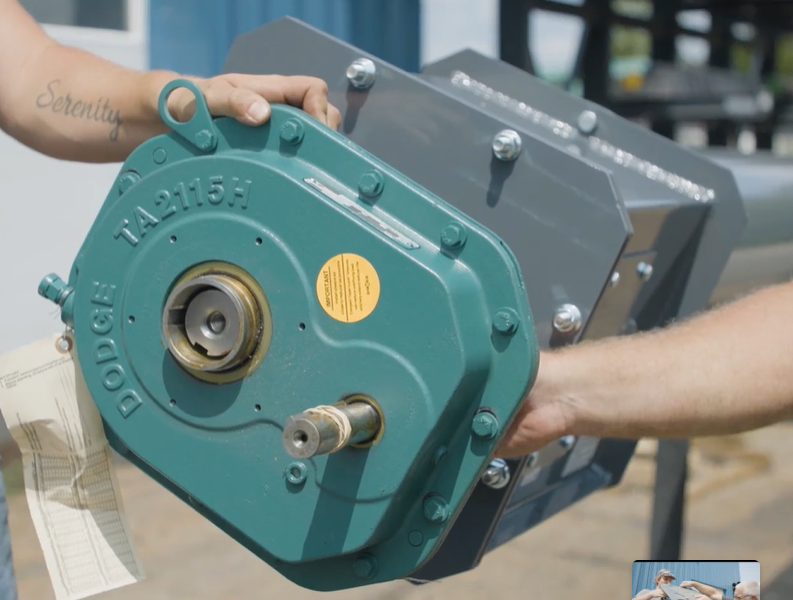

Dodge TA211H Enclosed Reduced Drive

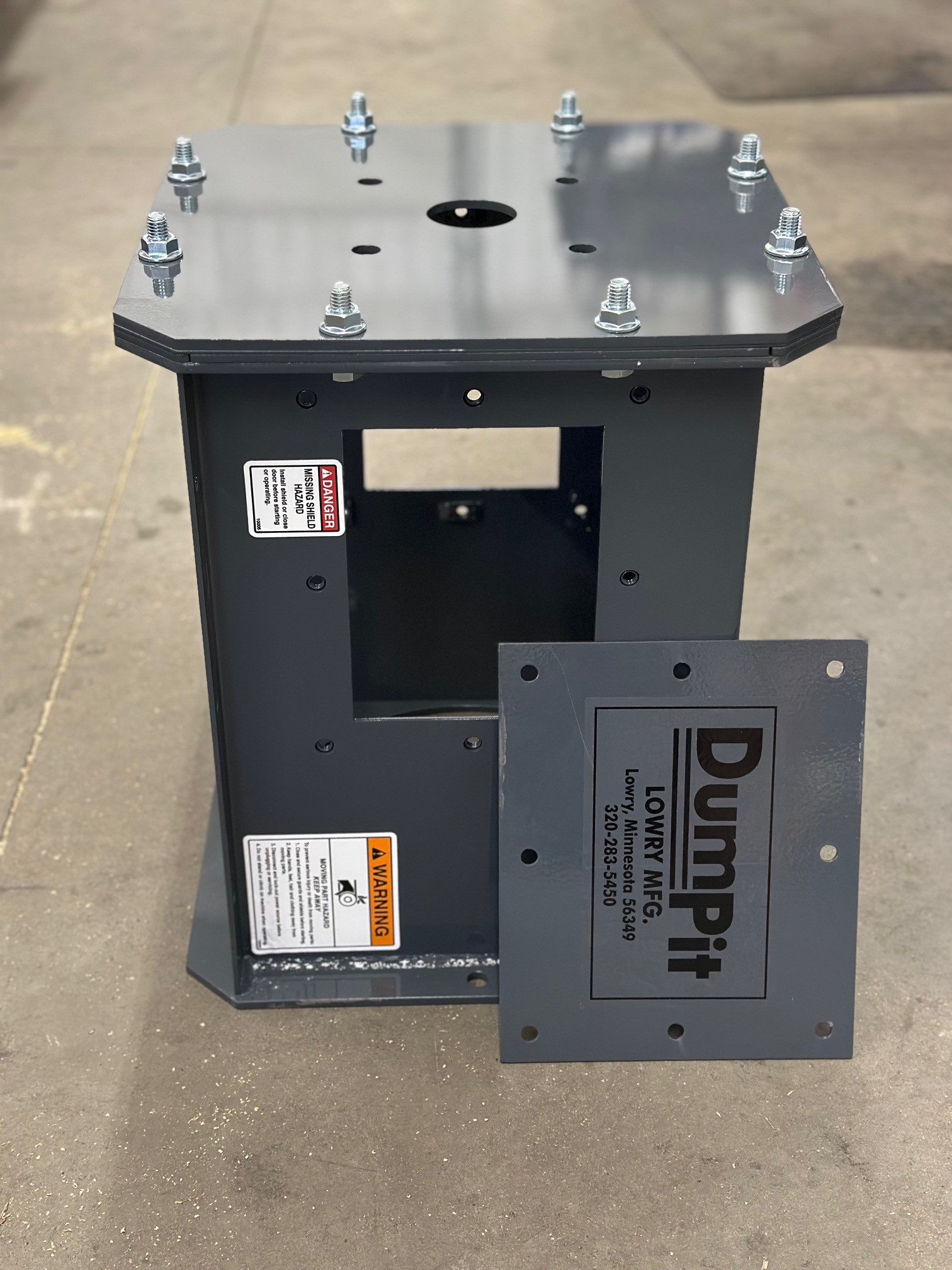

Drive Head Box - Inspection Panels

Lowry drive head boxes now have bolt-on panels on both sides, which may be removed to inspect the inside. For safety reasons, the panels must be bolted on when operating the DumPit.

Drive Heads & Parts

DumPit driveheads are a complete assembly, except for the motor, including a reducer, adapter, shaft, pulleys, belt guard, belts, taper bushings and motor mount.

We can help determine how to select or reduce the speed of an auger to match your targeted bushels per hour. Contact us for more information!

DumPit Drive Heads

Direct drives are standard with 8" and 10" augers.

Reducer drives are standard 12" and larger augers.

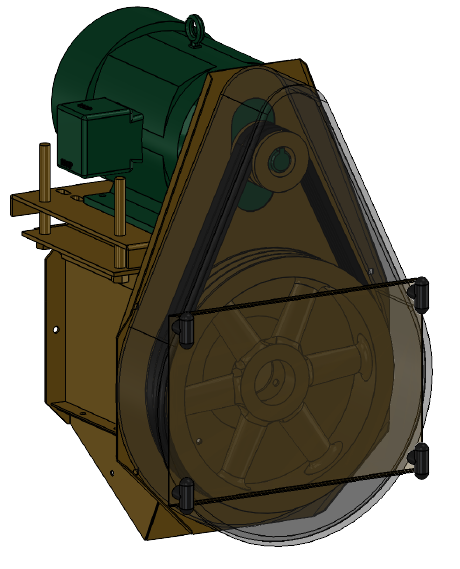

Direct Drive (motor not included)

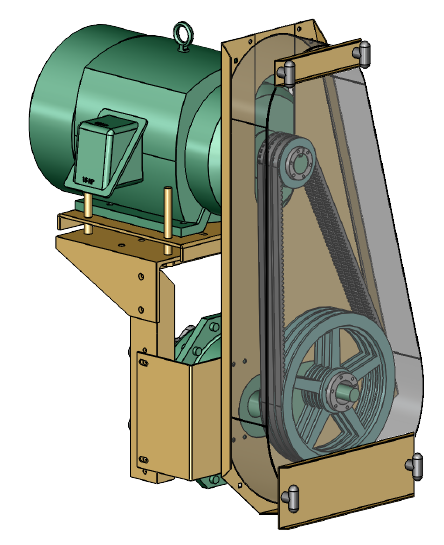

Reducer Drive - Back

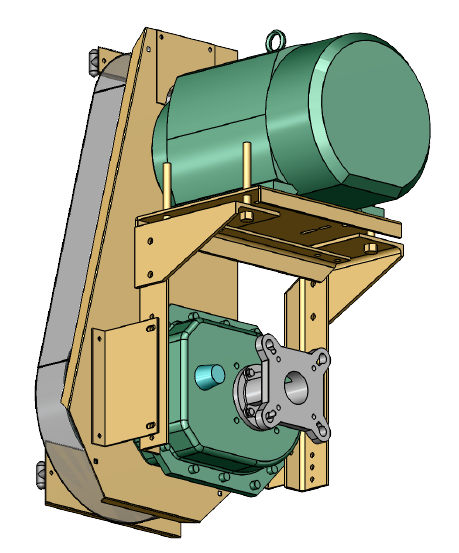

Reducer Drive - Front

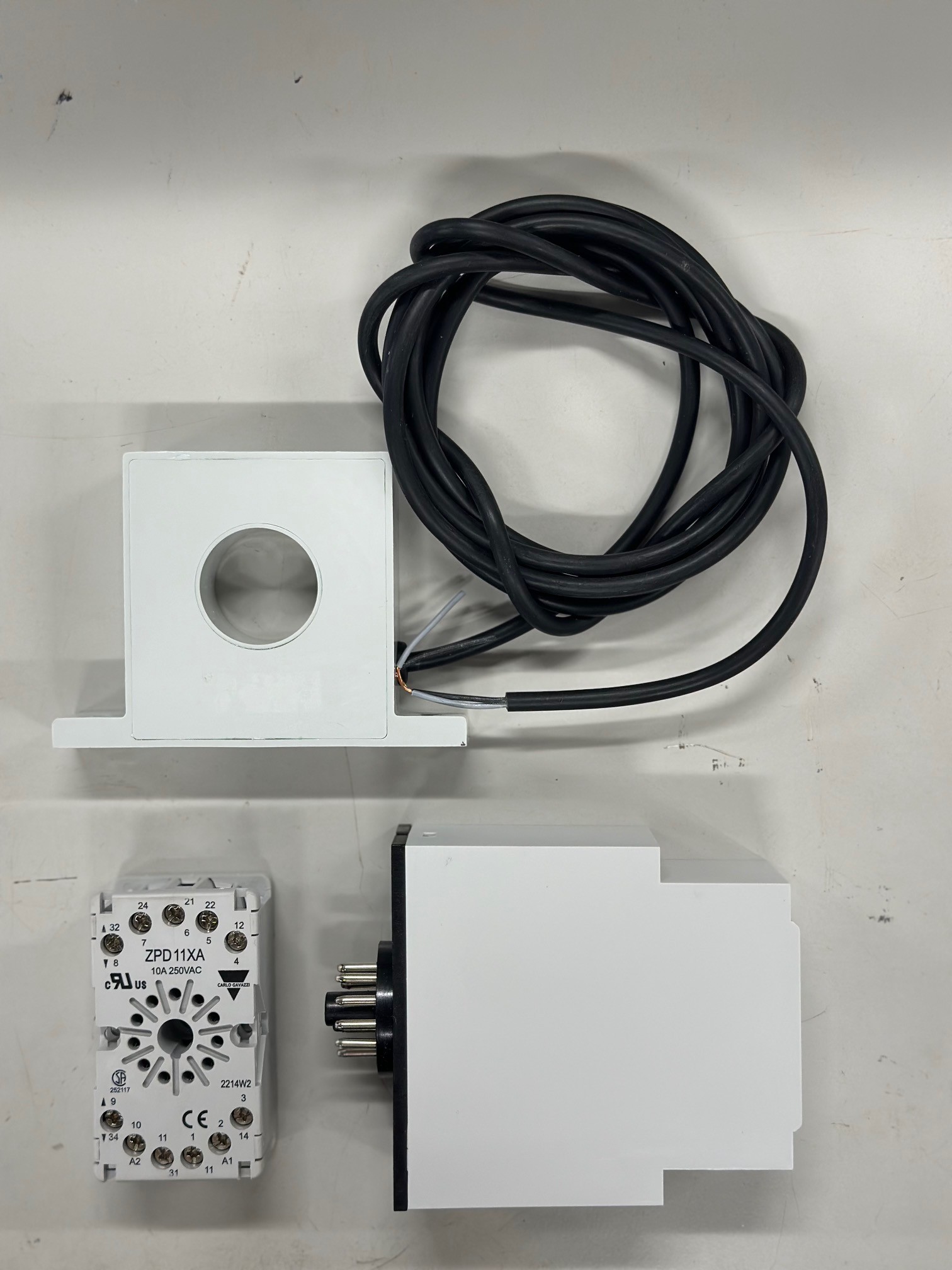

Motor Control - Auto Shut Off

To automatically shut off your DumPit once it empties, Lowry can provide an auto-shut-off electric load sensing package. It contains a current level relay with base and din rail and the current transformer. The auto shut-off senses when there has been a reduction in amps and signals to shut down the motor. A time-delayed secondary motor shutdown may also be added to the system.
